Industrail S Mount Lens

The S-Mount M12x0.5 series features low distortion, wide optical design, high transmission tec.

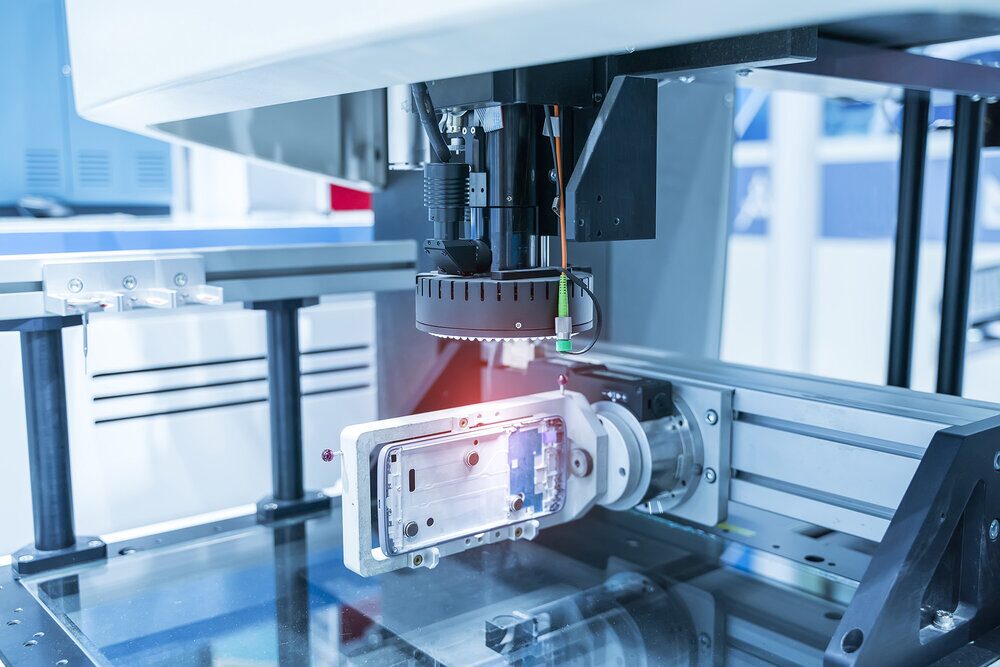

Widely used in machine vision, industrial inspction, medical equipment, robotis and automation.

Key Features

  • Various focal lengh from 3mm to 35mm
  • High Relative illumintation
  • Lens for 5MP,6MP,12MP cameras
  • Light Weight and compact size
  • Excellent optical performance, uniform imaging of center and edge
Get a Quick Quote

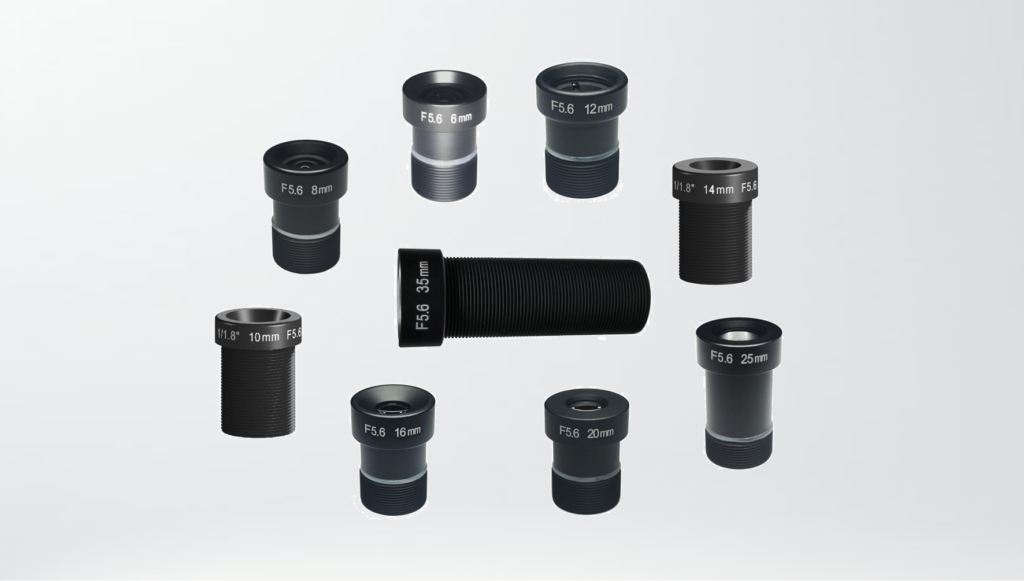

FA S Mount Lens_F2.8 Series

Model No.Sensor formatMegapixelFocal length(mm)Aperture (f#)Field of View (H°xV°)Optical distortionMODMountDimension (mm)
SS0328M51/2″5MP3.37mmF2.886°×70°<1%0.1m~∞M12xP0.5φ18.8×17.65
SS0628M51/1.8″5MP6mmF2.860.6°x46.6°<0.5%0.1m~∞M12xP0.5φ20×20.73
SS0828M51/1.8″5MP8mmF2.847°x35.6°<0.3%0.12m~∞M12xP0.5φ17×18.34
SS1228M51/1.8″5MP12mmF2.832.8°x24.5°< 0.2%0.1m~∞M12xP0.5φ15.4×19.37
SS1628M51/1.8″5MP16mmF2.824.4°x18.4°<0.1%0.1m~∞M12xP0.5φ14×13.78
SS2528M51/1.8″5MP25mmF2.815.6°x11.5°<0.05%0.1m~∞M12xP0.5φ14×19.50

FA S Mount Lens_F5.6 Series

Model No.Sensor formatMegapixelFocal length(mm)Aperture (f#)Field of View (H°xV°)Optical distortionMODMountDimension (mm)
SS0656M61/2″6MP6mmF5.654.3°×41.9°0.0450.1m~∞M12xP0.5φ14.6×18.3
SS0856M61/1.8″6MP8mmF5.647.2°×36.2°0.0150.1m~∞M12xP0.5φ14×19.4
SS1056M61/1.8″6MP10mmF5.639.7°×30.4°0.0010.1m~∞M12xP0.5φ14×16.56
SS1256M61/1.8″6MP12mmF5.632.4°×24.6°0.0010.1m~∞M12xP0.5φ14×17.8
SS1456M61/1.8″6MP14mmF5.628.9°×21.9°0.00150.1m~∞M12xP0.5φ14×17
SS1656M61/1.8″6MP16mmF5.624.5°×18.5°0.0010.1m~∞M12xP0.5φ14×18.93
SS2056M61/1.8″6MP20mmF5.619.3°×14.5°0.0020.1m~∞M12x0.5 φ14×17.77
SS2556M61/1.8″6MP25mmF5.616.3°×12.3°0.0020.1m~∞M12x0.5 φ14×22.7
SS3556M61/1.8″6MP35mmF5.610.7°×8.1°0.0020.1m~∞M12x0.5 φ14×36.97

FA S Mount Lens_F4 and F8

Model No.Sensor formatMegapixelFocal length(mm)Aperture (f#)Field of View (H°xV°)Optical distortionMODMountDimension (mm)
SS034M81/2.7″8MP3.23mmF483.5°x52.3°<-1.2%0.1m~∞M12xP0.5ф14.0×13.68
SS064M82/3″8MP6mmF467.25°x520.5°<-1.58%0.1m~∞M12xP0.5ф25.00×25.10
SS038M81/2.7″8MP3.23mmF883.5°x52.3°<-1.2%0.1m~∞M12xP0.5ф14.0×13.68
SS088M81/2.7″8MP8mmF834°x 26°<-1%0.1m~∞M12xP0.5ф14.0×16.85
SS168M161/1.8″16MP16mmF826.8°x15.2°<-0.35%0.1m~∞M12xP0.5ф14.0×16.32
SS258M51/2″5MP25mmF814.7°x 11.1°<-1.13%0.3m~∞M12xP0.5ф14.00×19.48
SS258M121/1.8″12MP25mmF814.2°x10.8°<0.13%0.15m~∞M12xP0.5ф18.0×22.92
SS358M121/1.8″12MP35mmF811.2°x 10°<-2%0.3m~∞M12xP0.5Ф22.0×28.82
