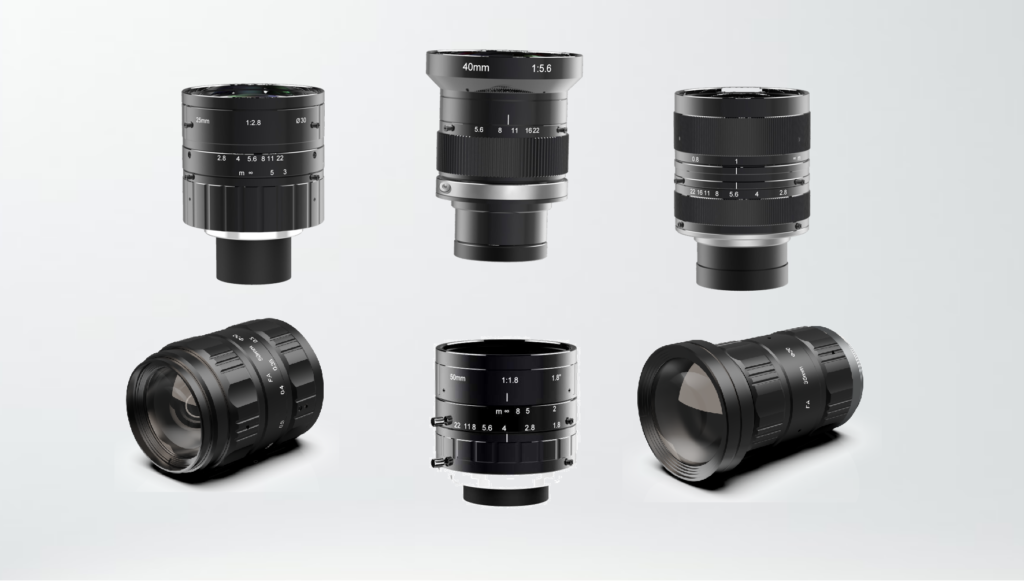

Line Scan Lens
We provide various of Lincescan Lenses, with high resolution and differnt mount choice. M42, M58, M72, F Mount and V Mount.
Which are widely used in industrial imaging, precise inspection, measurement or analysis of objects with hig detail and accuracy.
Key Features
- Large Aperture, up to F2.4
- High Relative illumintation
- Lens for 2K, 4, ,8K Line scan cameras
- Light Weight and compact size
- Excellent optical performance, uniform imaging of center and edge
4K F mount Line scan lens
| Suitable for 4K5μ/4K7μ line scan camera
| Model No. | Focal length(mm) | Aperture (f#) | Max. image | Resolution | Optical distortion | Mount | Dimension (mm) | Filter Size |
| FF2501 | 25mm | F2.8-32 | φ43 | 4K | 3.70% | F mount | Φ61.4×40.25 | M55×0.75 |
| FF2801 | 28mm | F2.8-22 | φ43 | 4K | -3.00% | F mount | Φ61.4×37.57 | M52x0.75 |
| FF3501 | 35mm | F2.8-32 | φ43 | 4K | -0.2.8% | F mount | Φ61.4×44.41 | M52x0.75 |
| FF5001 | 50mm | F2.8-32 | φ43 | 4K | 2.40% | F mount | Φ61.4×44.38 | M52×P0.75 |
| FF3503 | 35mm | F3.4-32 | φ43 | 4K | -1.21% | F mount | Φ60×81.54 | M43xP0.75 |
4K M42 mount Line scan lens
| Suitable for 4K7μm line scan camera
| Model No. | Focal length(mm) | Aperture (f#) | Max. image | Resolution | Optical distortion | Mount | Dimension (mm) | Filter Size |
| FM1501 | 15mm | F4.0-22 | φ32 | 4K | -0.20% | M42 | Φ60×75.3 | – |
| FM2501 | 25mm | F2.8-22 | φ30 | 4K | 0.09% | M42 | Φ59×98.8 | M55×0.75 |
| FM3501 | 35mm | F2.8-16 | φ30 | 4K | -0.08% | M42 | Φ55×86.7 | M43×0.75 |
| FM5001 | 50mm | F2.0-16 | φ30 | 4K | -0.07% | M42 | Φ52×63.5 | M43×0.75 |
| FM6001 | 60mm | F4.0-16 | φ60 | 8K | 0.20% | M72 | Φ49×66 | M43×0.75 |
4K M42 mount Line scan lens
| Suitable for 4K7μ line scan camera
| Model No. | Focal length(mm) | Aperture (f#) | Max. image | Resolution | Optical distortion | Mount | Dimension (mm) | Filter Size |
| FM1804 | 18mm | F2.8-22 | φ30 | 4K | -1.10% | M42 | Φ74×58 | M72x0.75 |
| FM2504 | 25mm | F2.8-22 | φ30 | 4K | -1.10% | M42 | Φ60×56 | M55×0.75 |
| FM2804 | 28mm | F2.8-22 | φ43 | 4K | -2.50% | M42 | Φ60×88.3 | M55×0.75 |
| FM3504 | 35mm | F2.5-22 | φ43 | 4K | -2.00% | M42 | Φ60×41.06 | M55×0.75 |
| FM5004 | 50mm | F2.4-22 | φ30 | 4K | -1.05% | M42 | Φ53.4×46.42 | M49×0.75 |
| FM5004 | 50mm | F2.6-22 | φ40 | 8K | -0.01% | M42 | Φ45.6×38.75 | M40.5×0.5 |
| FM8504 | 85mm | F2.8-22 | φ38 | 8K | -0.15% | M42 | Φ58.5×59.87 | M55×0.75 |
| FM15004 | 150mm | F5.6-22 | φ40 | 6K | 0.35% | M42 | Φ58×172.52 | M46X0.75 |
8K M58 mount Line scan lens
| Suitable for 8K5μ line scan camera
| Model No. | Focal length(mm) | Aperture (f#) | Max. image | Resolution | Optical distortion | Mount | Dimension (mm) | Filter Size |
| FM2505-B | 25mm | F4.0-22 | φ46 | 8K5μ | 0.20% | M58×P0.75 | Φ98×139.61 | M95×P1.0 |
| FM3505 | 35mm | F4.0-22 | φ42 | 8K5μ | 0.70% | M58×P0.75 | Φ69.4×130.5 | M67×P0.75 |
| FM5005 | 50mm | F3.6-22 | φ46 | 8K5μ | 0.20% | M58×P0.75 | Φ65×152.7 | M62×P0.75 |
| FM8005 | 80mm | F3.6-22 | φ46 | 8K5μ | 0.20% | M58×P0.75 | Φ70.2×132.2 | M62×P0.75 |
16K 3.5μ Line San Lens
| Suitable for 16K 3.5μ line scan camera
| Model No. | Focal length(mm) | Aperture (f#) | Max. image | Resolution | Optical Distortion | Mount | Dimension (mm) | Filter Size |
| FM4016 | 40mm | F4.0-22 | φ60 | 16K3.5μ | 0.01% | V38 | M72 | Φ48.5×50.09 | M40.5XP0.5 |
| FM6016 | 60mm | F4.0-22 | φ60 | 16K3.5μ | -0.04% | V38 | M72 | Φ48.5×31.67 | M40.5XP0.5 |
| FM8016 | 80mm | F4.0-22 | φ60 | 16K3.5μ | -0.07% | V38 | M72 | Φ55.5x 66.18 | M40.5XP0.5 |
100 Megapixel Full frame Lens
| Model No. | Focal length(mm) | Aperture (f#) | Max. image | Resolution | Optical Distortion | Mount | Dimension (mm) | Filter Size |
| FF35100 | 35mm | F2.8-22 | φ46 | 100MP |8K5U | -1.00% | F Mount | Φ55.5×85.38 | M52X0.75 |
| FF50100 | 50mm | F2.8-22 | φ46 | 100MP |8K5U | -1.00% | F Mount | Φ58×90.88 | M55X0.75 |
| FF80100 | 80mm | F3.5-22 | φ46 | 100MP |8K5U | 0.12% | F Mount | Φ65×93.52 | M62X0.75 |
